  • Geomagic Capture
  • The Capture scanners from 3D Systems deliver accurate and fast blue light 3D scanning technology in a portable, lightweight unit that can be hand-held, static and easily combined into a multi-scanner configuration. With the optional ProPack, you can seamlessly add the turntable functions and transport your scanner safely in a high-quality case.

    The Capture comes in two models, the Capture and Capture Mini, which are integrated with Geomagic reverse engineering software and 3D inspection software for rapid and highly accurate scan-to-3D processes.

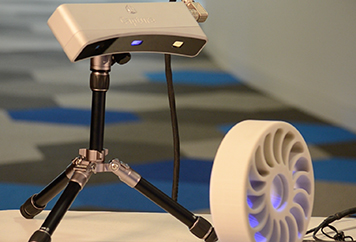

  • 3D Digital Thread

    Get to Market Faster with the 3D Digital Thread.

  • Lost Design Data

    Rapidly Recover Lost Design Data

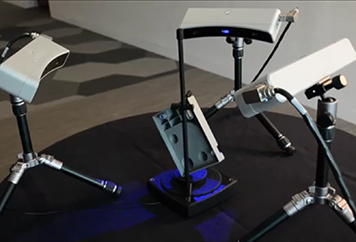

  • Multi-Capture Scanning

    Scan Faster with Multi Capture Scanning

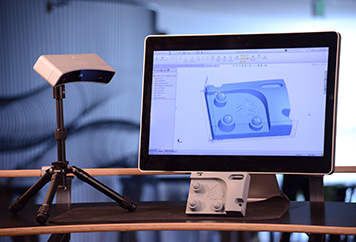

  • Increase Efficiency

    Reduce Costs and Increase Efficiency

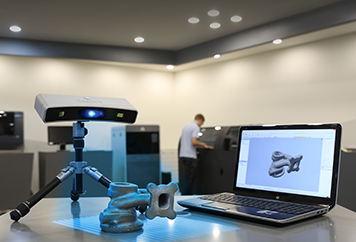

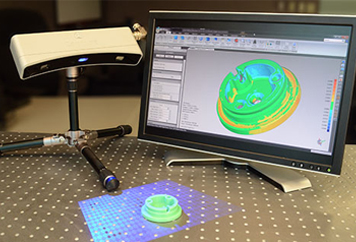

  • Design

    Design from the World Around You

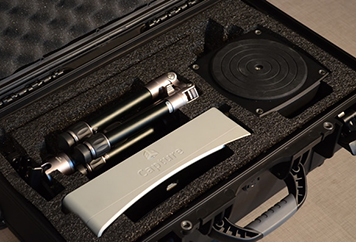

  • The Geomagic Capture ProPack

    The Geomagic Capture ProPack

    3D Systems Capture Scanner Specifications

    Property Capture Capture Mini
    Weight 1.35 kg 1.04 kg
    (L x W x H)
    276 x 74 x 49 mm 155 x 109 x 49 mm
    Data Capture Rate 985,000 points/scan (0.3 sec per scan) 985,000 points/scan (0.3 sec per scan)
  • 0.110 mm at 300 mm
  • 0.180 mm at 480 mm
  • 0.080 mm at 157 mm
  • 0.100 mm at 227 mm
  • Accuracy 0.060 mm 0.034 mm
    Stand-off Distance 300 mm 157 mm
    Depth of Field 180 mm 70 mm
    Field of View
  • 124 x 120 mm (near)
  • 190 x 175 mm (far)
  • 87 x 68 mm (near)
  • 88 x 87 mm (far)
  • Computer Requirements Windows 7/8 (64-bit) Operating System, Intel and AMD Quad-core 2-GHz CPU or better, Gigabit Ethernet interface, 4 GB Memory or greater, 512 MB Video Card or better
